Navigation Regions

Navigation is the logic that determines how an agent move from Point A to Point B. Whether you are working in 2D or 3D, the core "brain" is the NavigationServer.

1. 2D Navigation (Top-Down / Side-Scroller)

In 2D, the logic follows the same "Server > Region > Agent" stack, but uses pixel coordinates rather than world units.

The 2D Hierarchy

• NavigationRegion2D: The parent node that contains your walkable area.
• NavigationPolygon: Unlike 3D which uses a mesh, 2D uses a polygon to define the floor.
• NavigationAgent2D: The traveler node attached to your 2D character.

The 2D Workflow

1. Define the Area: Draw a NavigationPolygon inside your NavigationRegion2D to mark the walkable floor.
2. Child Nodes: Just like in 3D, any static obstacles (like walls or pits) should be children of the Region so the baker can "carve" them out of the polygon.
3. Pathfinding: Use the NavigationAgent2D to get the next position in the 2D plane.

2. 3D Navigation (FPS / Top-Down 3D)

In 3D, we deal with height, ramps, and complex geometry.

The 3D Hierarchy

• NavigationRegion3D: The parent node added to your level tree.
• NavigationMesh: The geometry data (baked from your environmental children) that defines the floor.
• NavigationAgent3D: The traveler node for your 3D NPC.

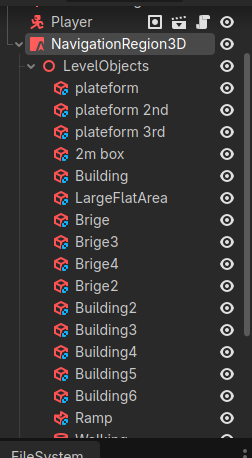

The 3D Tree Setup

As seen in your level tree, everything you want the AI to "see" must be a child of the NavigationRegion3D:

• NavigationRegion3D
  • LevelObjects (Node3D)
    • Platforms, Bridges, Buildings, Ramps


Comparison Summary
